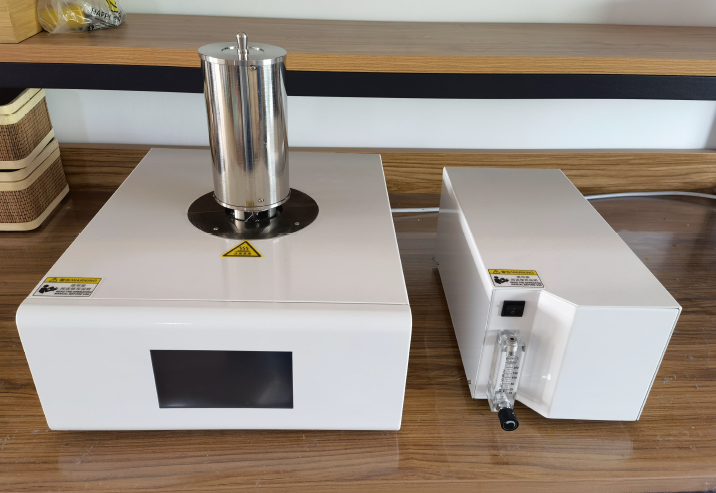

Thermogravimetric Analyzer

Thermogravimetric analysis (TG, TGA) is to observe the change of sample mass with temperature or time during the process of heating, constant temperature or cooling, with the purpose of studying the thermal stability and composition of the material. It is widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials. Measure and study the following properties of materials: thermal stability, decomposition process, adsorption and desorption, oxidation and reduction, quantitative analysis of ingredients, influence of additives and fillers, moisture and volatile matter, reaction kinetics.

Features

1. Use imported balances, which have internal calibration functions and have better accuracy and repeatability.
2. The imported alloy sensor is used, which is more resistant to corrosion and oxidation, and the sensor has high sensitivity.
3. The furnace body is made of precious metal alloy wire for heating, which reduces interference and is more resistant to high temperatures.
4. Complete atmosphere control system, software settings automatically switch, and data is directly recorded in the database.
5. Using Cortex-M3 core ARM controller, the computing processing speed is faster and the temperature control is more accurate.
6. Using USB two-way communication to fully realize intelligent operation.
7. Use a 7-inch 24-bit full-color LCD touch screen to display the status and data of the instrument in real time.
8. It adopts a top-opening structure and is easy to operate. It is difficult to move the furnace body upward to place the sample, which may easily cause damage to the sample rod.
9. Automatically generate and print test reports. The software has built-in test records, data processing and report formats, and automatically issues test reports
