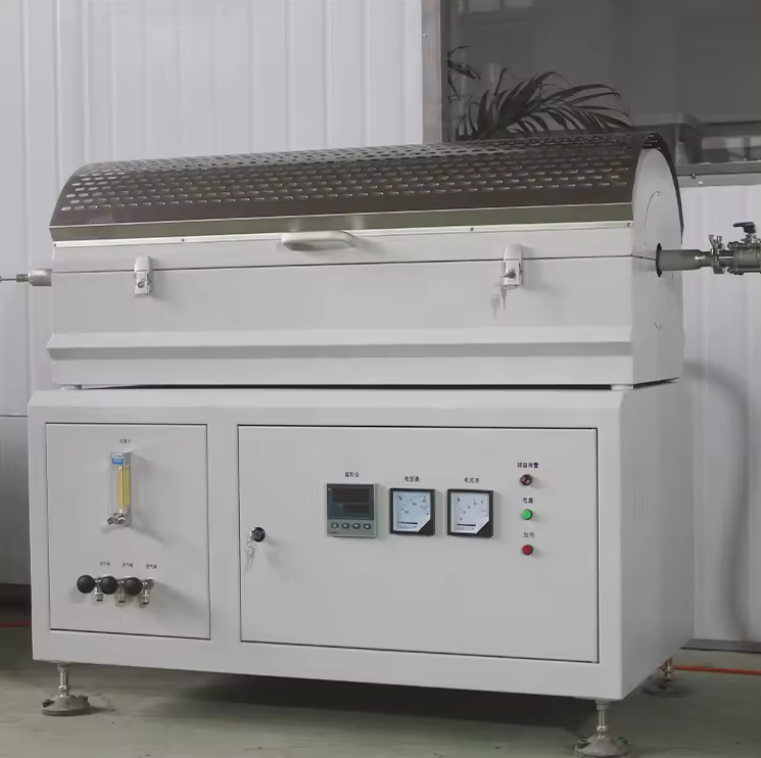

Small capacity Dia 40mm stainless steel tube furnace 1000 degree horizontal split type open type vacuum quartz tube furnace
Brief Introduction
Tube furnace use quartz tube or High purity Al2O3 ceramic as furnace chamber. Working range is from 800Celsius to 1600Celsius. Precise and advanced auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform, Our tube furnace are widely used in the labs of university and Research Institutions, also used in factory for production
Here are some key features and applications of tube furnaces:
Temperature Control: Tube furnaces are equipped with precise temperature control systems to ensure consistent heating profiles. They can reach temperatures from a few hundred to over a thousand degrees Celsius.
Uniform Heating: The cylindrical design allows for uniform heating of samples, which is crucial for reproducibility in experiments.
Controlled Atmosphere: Many tube furnaces come with options for controlling the atmosphere inside the tube, such as vacuum, inert gases (like nitrogen or argon), or reactive gases. This control is important for processes that require specific environmental conditions.
Sample Size and Loading: They can accommodate various sample sizes, from small quantities in research labs to larger samples in industrial applications.
Applications: Tube furnaces are used in a wide range of applications including the synthesis of materials (such as nanoparticles), heat treatment of metals and ceramics, pyrolysis, and catalyst testing.
Price: Request Quotation
| Max.temperature | 1000°C |
|---|---|
| Working temperature | 0-900℃ |
| Furnace Chamber size()mm | Customizable |
| Heat element | SiC Heating Element & Resistance wire |
| voltage and frequency | 110v 220v 380v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | K type |
| Control Type | Push Button |
| Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise,automatic temperature drop, no duty.(can be replaced by touch screen with additional order) |
| Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with hightemperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection isaging resistant tone, will not cause the appearance color fade due to a long time of use. |
| Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highesttemperature and the surface temperature of the shell is below 45℃,And it is safe . |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection,ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protectionfunctions) to make the electric furnace work stable and reliable, safe. |
| Inlet gas/Atmosphere | It can be filled with a variety of protective or destructive gases, inert gases, mixed gases, nitrogen, argon, oxygen, etc |
| Gas control | The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge.The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
| Furnace Chamber material | Three layers of ceramic fiber insulation materials● First layer: 1400°C ceramic fiber board, density 550kgs/m3. Thermal conductivity (1400℃) is only 0.18W/m.k.● Second layer: 1400°C ceramic fiber board, density 400kgs/m3.● Third layer: 1460°C ceramic fiber board, density 320kgs/m3.The advantage is light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, donot worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
| Furnace chamber design | Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heatingprocess of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
| Standard accessories | Stainless steel hook 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 800C,900C,1000C,1100C,1200C,1300C,1400C,1500C,1600C,1700C,1800C, |
| Standard size:(Outer diameterX hot zone length) | Dia40x300mm (1.5 |
| Waranty | One year |
